Kverneland 2300
Компактная конструкция - надежная работа
Задненавесные косилки для легкого, бережного кошения
Описание
Kverneland 2300 M предназначена для небольших операций по скашиванию. С шириной захвата 1,66-2,40 м и легкой конструкцией эта косилка идеально подходит для фермеров, которым нужна компактная машина с низкими требованиями к мощности. Гибкая подвеска позволяет косить под углами 15° вверх и 45° вниз соответственно. При транспортировке косилка складывается в вертикальное положение далеко позади трактора для безопасной транспортировки. При столкновении с препятствием подпружиненная система BreakBack откидывает косилку назад для защиты косилки.
Характеристики
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.

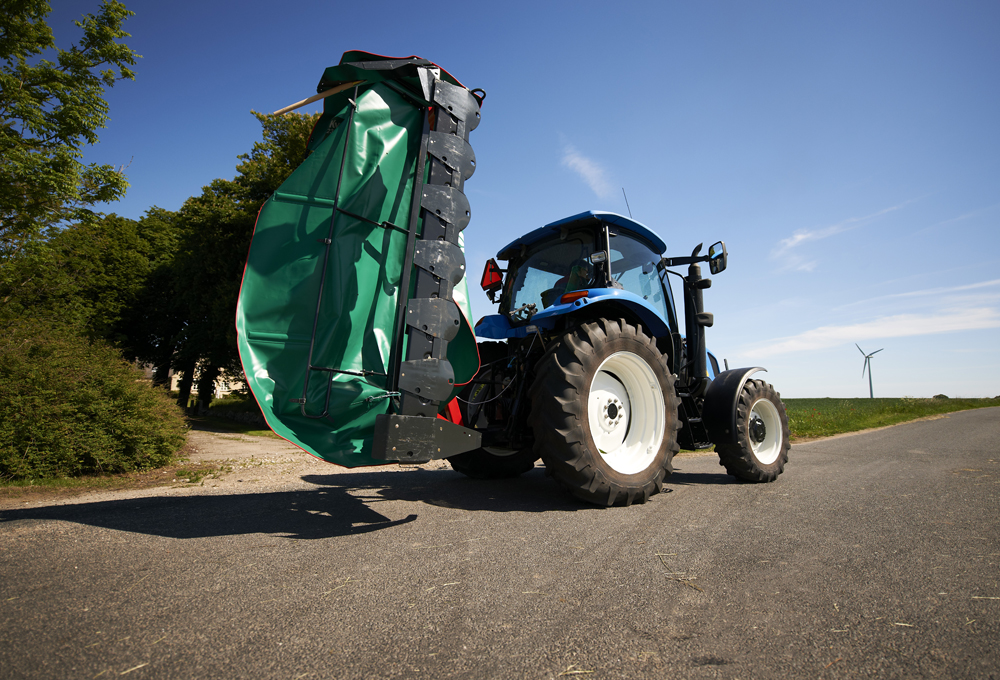

- When in transport, the mowers are folded to a vertical position well behind the tractor for safe transport.
- The centre of gravity is close to the tractor, which ensures excellent weight distribution and transport stability, even during high speed road transport.
- If encountering an obstacle the spring loaded BreakBack system will swing the mower backwards to protect the cutterbar.
- Resetting the mower to working position is simply done by revering.
- On headlands the mower is lifted without activating the three-point linkage of the tractor which needs no adjustment in the field. A clever and simple solution ensuring good clearance and eliminating swath damage.
Технические характеристики
Технические характеристики
Скачать брошюру
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Модель | 2316 M | 2320 M | 2324 M | |
|---|---|---|---|---|
| Рабочая ширина (м/фут) | 1.66(5'5") | 2.05(6'9") | 2.4(7'9") | |
| Транспортная ширина (м) | 1.2 | 1.2 | 1.2 | |
| Категория навески (CAT) | 2 | 2 | 2 | |
| ВОМ (об/мин) | 540 | 540 | 540 | |
| Минимальная требуемая мощность Мощность ВОМ (кВт/л.с.) | 26 / 36 | 31 / 42 | 34 / 46 | |
| Количество дисков и ножей | 4/8 | 5/10 | 6/12 | |
Unable to load the table
Технические характеристики
Технические характеристики
Скачать брошюруШирина захвата (м) |
Вес (кг) |
Треб. мощность кВт/л.с. |
|
2316 M |
1.65 |
390 |
26/36 |
2320 M |
2.15 |
430 |
30/42 |
2324 M |
2.40 |
495 |
33/46 |
