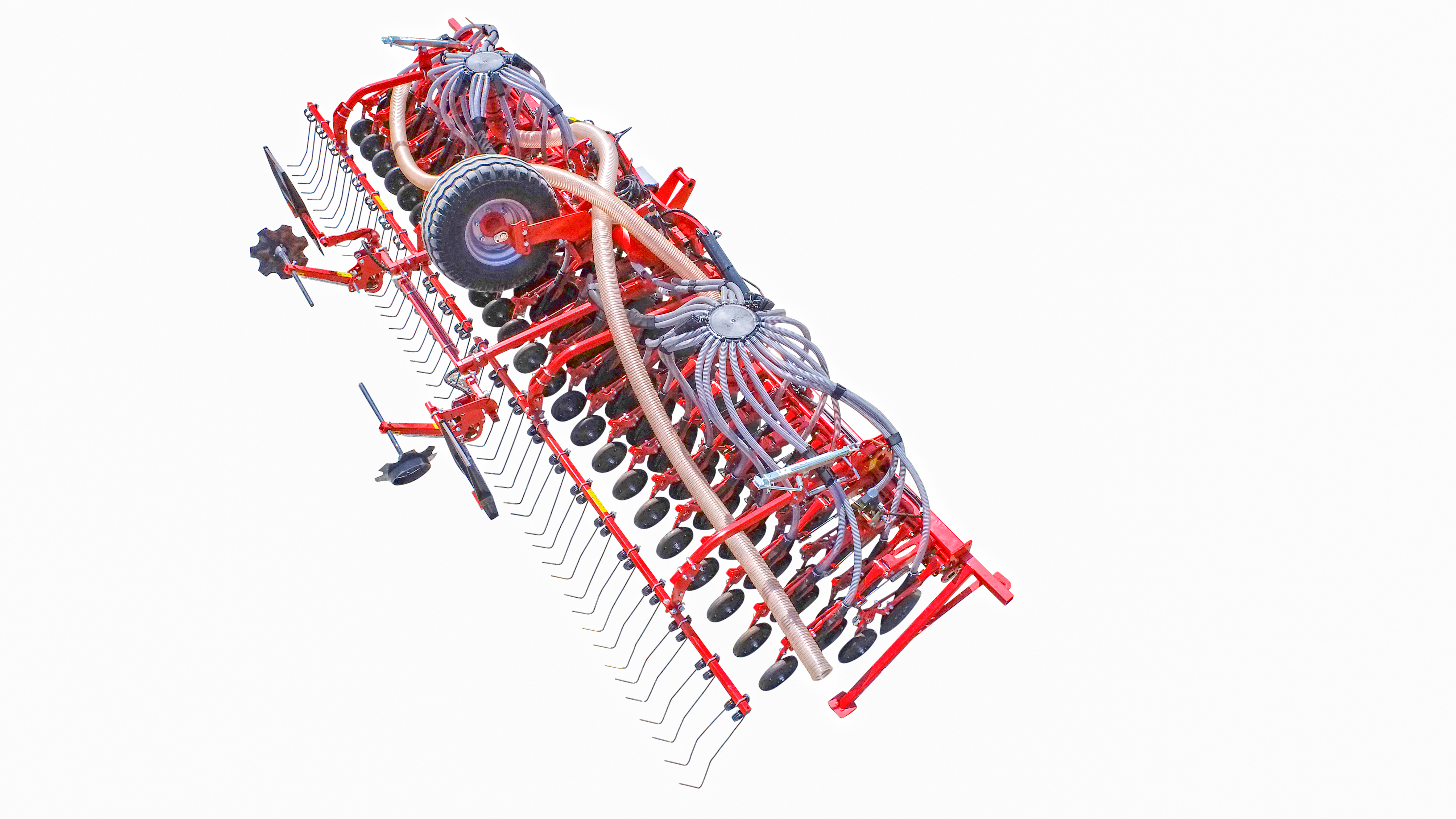

f-drill CB F

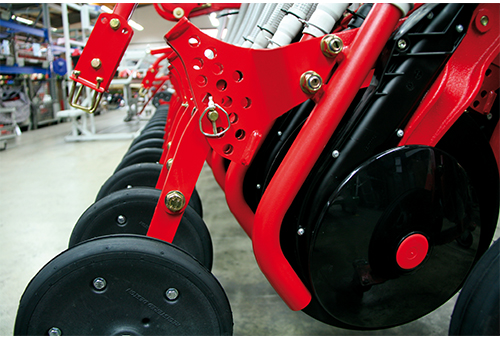

The rigid f-drill CB in 3.0m / 3.5m / 4.0m and the folding f-drill CB F in 4.0m working width can be also fitted with double entry CX-II coulters for additional ways of sowing. With the coulter CX-II double-entry, fertiliser or a second crop is placed together with the seeds in just one working pass. This is especially suitable e.g. for phosphoric fertiliser to support the initial germination and development of the plants in the most efficient way. Due to an extra outlet of the CX-II coulter double entry, various combinations are possible:

• two types of seeds,
• one type of seed and one type of fertiliser or
• one type of seed combined with e.g. slug pellets
• one type of seed.

The flexible and individual depth setting of each CX-II coulter double entry allows different sowing depth even within one working width. This is extremely important when sowing two different products in one pass e.g. rape at a shallow depth and companion crops like beans deeper.

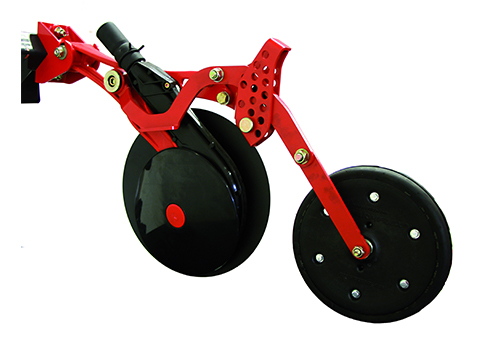

The CX-II disc coulter from Kverneland not only guarantees smoother running but also exact seed placement. The flatter cutting angle of only 5.4° of the steel disc requires less pulling power to reach a constant seeding depth of up to 6cm.

Due to the combination of the steel disc with a diameter of 325mm and the flexible plastic disc, there is no need for independent scrapers, saving the cost for expensive wearing parts. In addition the coulter is completely maintenance-free!

Up to 50kg coulter pressure can be achieved by a pre-loaded spring. Safe operation is ensured when working with high working speeds and high quantities of plant residues on the soil surface. An inter-row coulter spacing of 445mm for maximum clearance and the following press wheel (standard equipment) ensure an optimum seed/soil contact in all conditions. The press wheels can be set in fixed, floating or lifted position in order to be able to adapt quickly to changing weather, soil or working conditions.

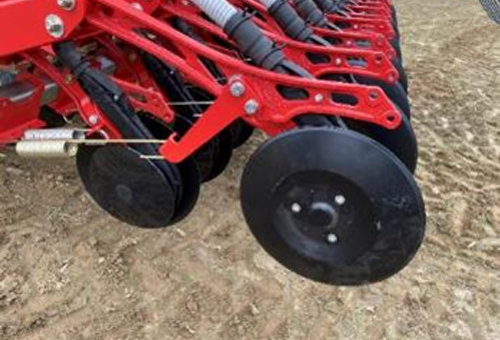

The CX-II coulter is also available as light edition without press wheel which reduces the weight and length of the coulterbar. This will allow to operate the seeding combination also with lower lifting capacity of the tractor.

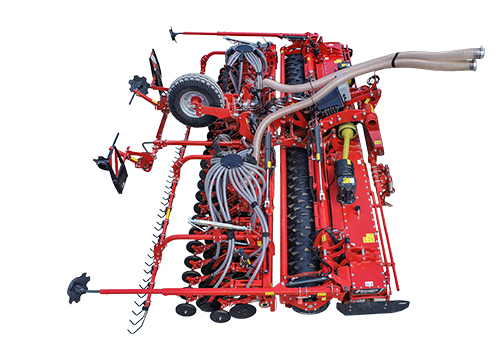

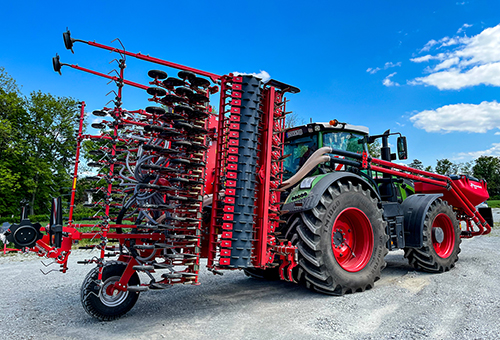

The folding coulterbar of the seeding combination Kverneland f-drill front hopper and power harrow, Rotago F, is equipped with a support wheel for road transport.

• The support wheel can be mounted on the power harrow or to the attached coulter bar
• The constant supporting force on the wheel ensures smooth road transport, due to the hydraulic suspension
• No uncoupling of the top linkage for transport necessary
• Passive steering

When driving backward, the support wheel must be lifted.

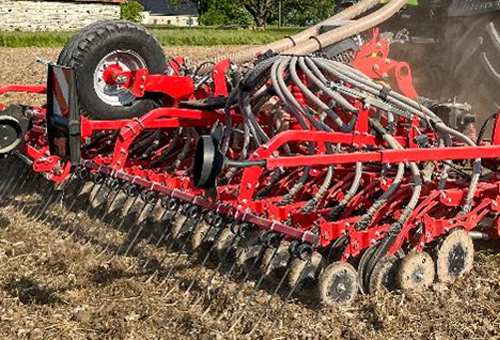

The folding coulterbar f-drill CB F is equipped with a following harrow to finish the job. The S-shaped harrow ensures an optimum covering of the seeds. The working intensity can be set by the step less pressure  adjustment.

Простое подключение к электронике — интеллектуальное и удобное для оператора.

Программное обеспечение ISOBUS e-com с функцией «plug and play» позволяет подключать сеялку F-Dril CB и фронтальную сеялку F-Dril с бункером к любому трактору, совместимому с ISOBUS, для полноценного использования с помощью собственного терминала трактора или, в качестве альтернативы, с помощью Kverneland Tellus 700 и Tellus 1200.
